The advanced hybrid solar inverter is designed to intelligently manage power sources, prioritizing solar energy, battery storage, and utility grid input to ensure an uninterrupted and optimized power supply. With a user-friendly LCD interface, users can configure power settings, charging parameters, and safety features for customized energy management.
Highlights:
1 Year Warranty
1250VA/ 1000W (1KW) Pure Sine Wave Off-grid/ Hybrid Inverter
12V DC Battery Voltage
150V Max Solar Input Voltage (PV open circuit voltage/ VOC)
40A Battery Charge Current from AC/Grid
40A Solar Charge Current (MPPT)
Supports Flooeded Lead Acid (Pb)/ Tall-tubular batteries
Supports Lithium Iron Phosphate LiFePO4 batteries
10mSec switching time
Features:
1. Output Source Priority Configuration
Utility First (Default): Utility power supplies the load primarily. Solar and battery power are utilized only if the utility source is unavailable.
Solar First: Solar energy powers the load first. If insufficient, the utility source supplements the power. The battery is used as a last resort.
SBU Priority: Solar energy powers the load first, with battery backup. Utility power is used only when battery voltage reaches the low-level threshold.
2. Maximum Charging Current Adjustment
Configurable charging current for solar and utility sources.
Adjustable between 10A and 40A (model-dependent).
Supports efficient battery charging to prevent overloading.
3. AC Input Voltage Range
Appliance Mode (Default): Operates within 90V - 280V AC.
UPS Mode: Operates within a 170V - 280V AC range for high-priority applications.
4. Battery Type Selection
AGM (Default), Lead Acid/ Tall Tubular/ Flooded, or User-Defined Mode.
User-defined mode allows custom charge voltages and DC cut-off thresholds.
5. Auto Restart Features
Overload Protection: Restart enabled or disabled after overload occurs.
Overtemperature Protection: Restart enabled or disabled based on temperature limits.
6. Output Configuration
Frequency Selection: 50Hz (Default) or 60Hz.
Voltage Output: Configurable between 220V, 230V (Default), and 240V.
7. Utility Charging Current Adjustment
Adjustable charging current for utility input from 2A to 40A.
Ensures optimal charging efficiency based on load requirements.
8. Smart Battery Management
Setting Voltage for Switching Power Sources (SBU Mode)
Selectable thresholds ensure a seamless transition between battery and utility power.
Models available for 12V battery configurations.
Fully customizable bulk charging and floating charging voltages.
9. Charger Source Priority
Utility First: Charges batteries primarily using grid power.
Solar First: Prioritizes solar energy for battery charging.
Solar & Utility (Default): Simultaneous charging from both sources.
Solar Only: Only solar energy is used for battery charging.
10. Audible & Visual Alerts
Alarm Control: Enables/disables alerts for system events.
Auto Return to Default Display: Configurable display preferences.
Backlight Control: Allows turning the LCD backlight ON/OFF for power saving.
11. Additional Protection Features
Overload Bypass Mode: Allows the inverter to switch to line mode during overload conditions.
Fault Code Recording: Keeps logs of past errors for troubleshooting.
Primary Source Interruption Alerts: Enable or disable beep alerts when the primary power source is disrupted.

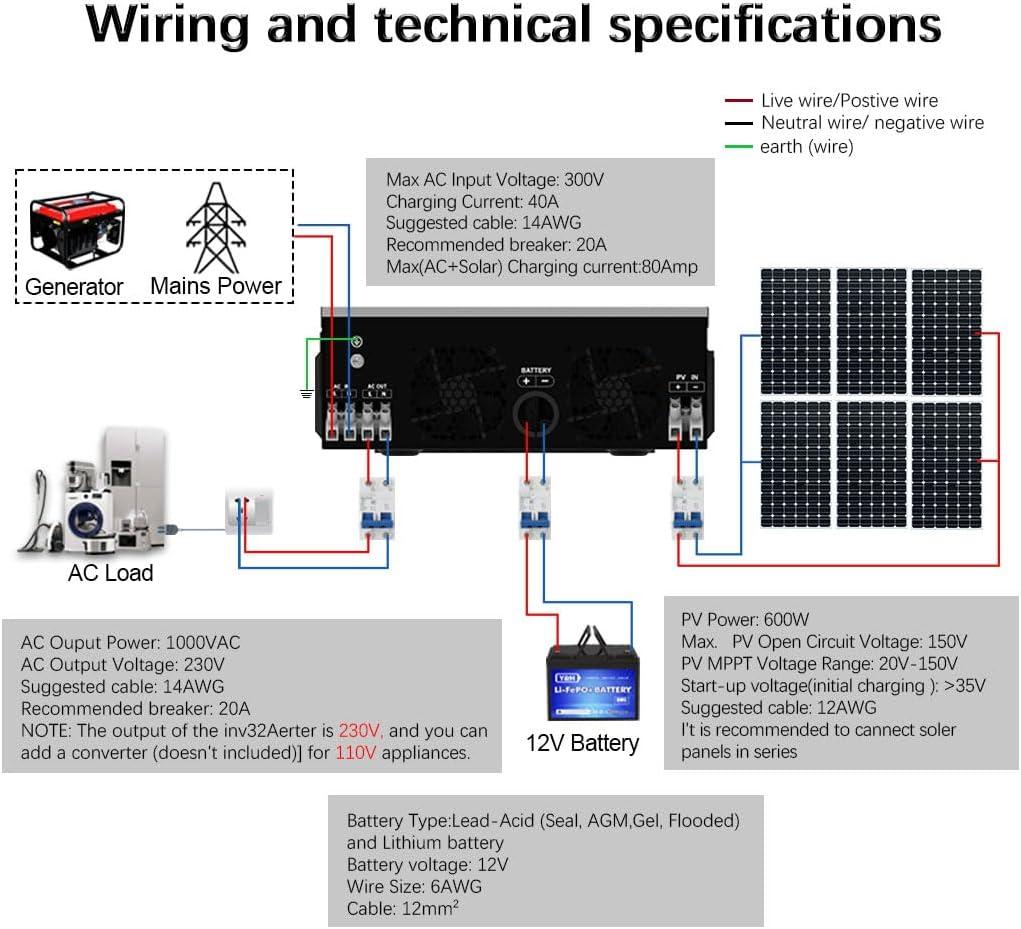

Specifications:
Rated Power 1000W
Input voltage: 230VAC
AC voltage regulation: ±5%
Effciency MPPT (peak) : 98%
Efficiency Inverter (peak): 94%
Transfer/ switching time: 10mS
Battery voltage: 12V DC
Floating charge voltage: 13.5V DC
Overcharge protection: 16V DC
Solar charger type: MPPT
Max Solar power: 600W
MPPT range: 20-150VDC
Maximum Solar voltage (open circuit): 150VDC
Max MPPT charging current: 40A
Max Grid/ AC charging current: 40A
Max charging current (MPPT+AC): 80A
